The UNITED GRINDING Group presented a series of world premieres at the GrindingHub 2022. Among other things, a new cylindrical grinding machine (STUDER S36), a new loading system (STUDER uniload), a tool grinding machine (WALTER HELITRONIC G 200) and – as an extension of the Group’s machine portfolio – a revolutionary additive machine tool for manufacturing metallic components using "3D printing" (IRPD IMPACT 4530).
Thank you very much for your visit – and we are looking forward to the next edition of GrindingHub: May 14 - 17, 2024 in Stuttgart.
These products were presented
The compact 5 axis grinding center is ideal for grinding complex geometries, particularly in the case of guide and rotor blades as well as heat shields for aircraft turbines.

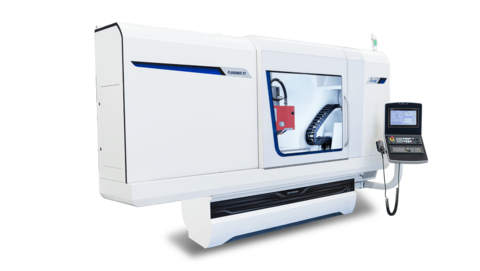

PLANOMAT XT Essential
The competitive 3 axis entry level machine for high precision surface and profile grinding
Higher main axis speeds, greater acceleration and increased system rigidity - the combination of these consistently optimized essential performance characteristics means increased productivity while improving component quality.

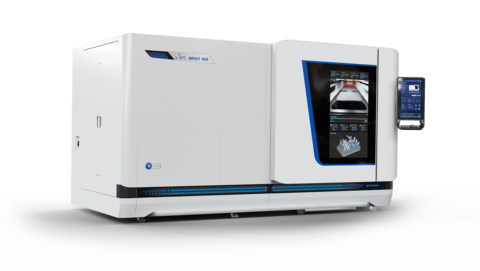

IMPACT 4530 LPBF Printer
IMPACT 4530, the modular and scalable additive machine tool for metal is "Made in Switzerland" and consistently designed according to the values of Industry 5.0.
The favoritCNC is a universal cylindrical grinding machine for medium-sized workpieces. It has distances between centres of 650mm (25.6") / 1000mm (40") and a centre height of 175mm (6.8"). It can machine workpieces with a maximum weight of 80kg (176lbs) / 120kg (264lbs).
The S33 is a CNC universal cylindrical grinding machine for small to large workpieces. It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).
The S31 is a cylindrical grinding machine for small to large workpieces It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).
The S41 is a CNC universal cylindrical grinding machine for large workpieces. It has distances between centres of 1000mm (40") / 1600mm (63") and centre heights of 225mm (8.8") / 275mm (10.8"). It can machine workpieces with a maximum weight of 250kg (550lbs).
The S36 was in part designed to respond to increasing demand for e-mobility production solutions. It has a center distance of 650 mm, a center height of 225 mm, and a grinding wheel diameter of 610 mm.
The S131 is a radius internal cylindrical grinding machine that is especially suitable for grinding complex workpieces from very hard materials The maximum swing diameter is 300mm (11.7") and the maximum workpiece weight is 100kg (220lbs).
The COMPACT LINE CNC grinding machine with its six CNC axes can grind carbide, ceremet, ceramic or PCB/PCD indexable inserts.
HELITRONIC G 200
The HELITRONIC G200 is a cost-efficient tool grinding machine with a small footprint.
The high-end HELITRONIC MICRO tool grinding machine produces and sharpens rotationally symmetrical tools and production parts with smaller diameters.
HELITRONIC VISION DIAMOND 400 L
The high-end HELITRONIC VISION DIAMOND 400 L eroding and grinding machine can erode tools made of PCD/CBN material and grind tools made of high-speed steel/carbide
HELICHECK PLUS is the universally used measuring machine for both micro-tools and tools in the standard range. Measurements for transmitted light and incident light are performed by the HELICHECK PLUS operator-independent, CNC-controlled and μ-precise.
LASER LINE PRECISION
The LASER LINE PRECISION laser processing machine handles ultra-hard materials such as PCD, CVD-D, CBN and MKD by laser. It can accommodate rotation-symmetric tools of up to 200 mm in diameter and up to 250 mm in length and indexable inserts from 3 mm internal and up to 50 mm external diameter.
