The production platform
for your individual grinding solution.
Basic Data

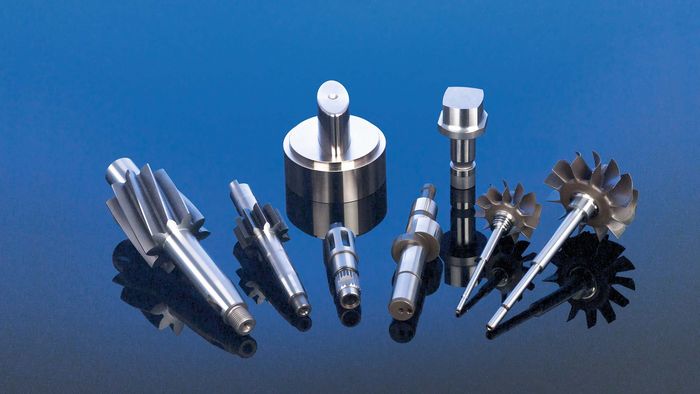

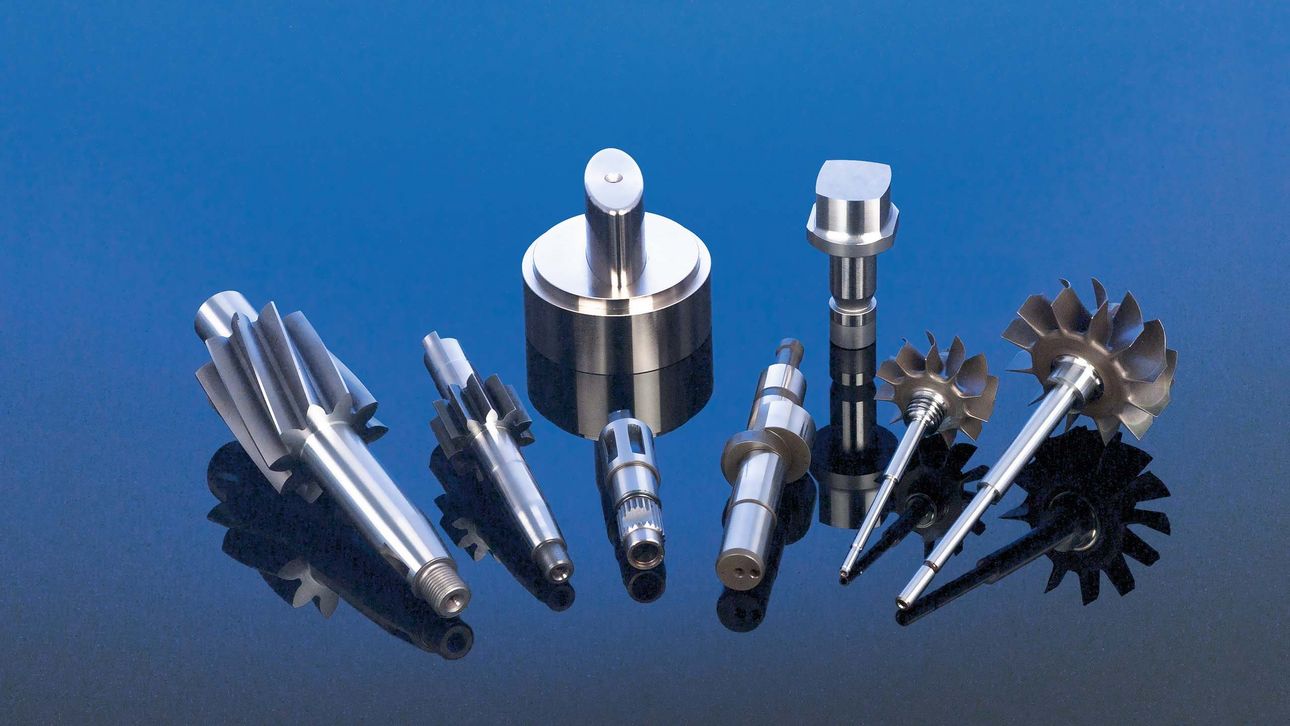

The S22 is a production platform for the mass production of medium-sized workpieces. It has distances between centres of 800 mm (31.5") and centre heights of 175mm (6.9") / 225mm (8.8"). It can machine workpieces with a maximum weight of 150kg (330lbs).

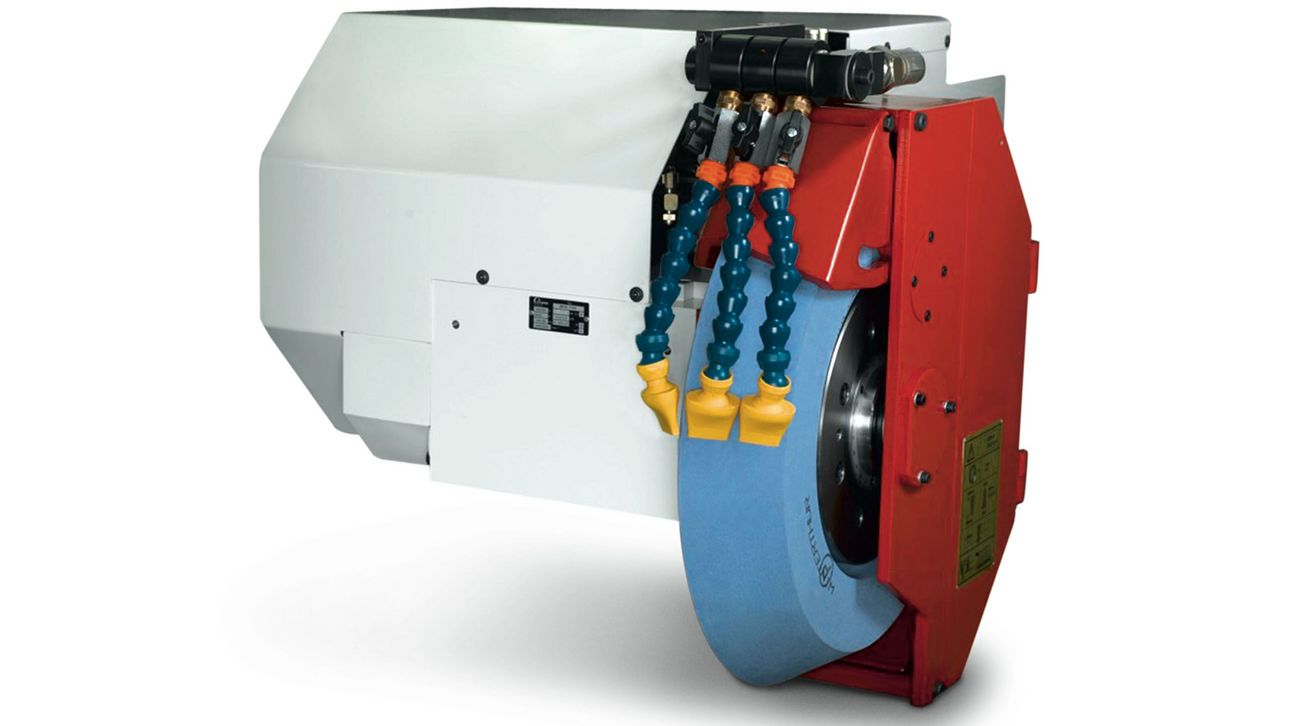

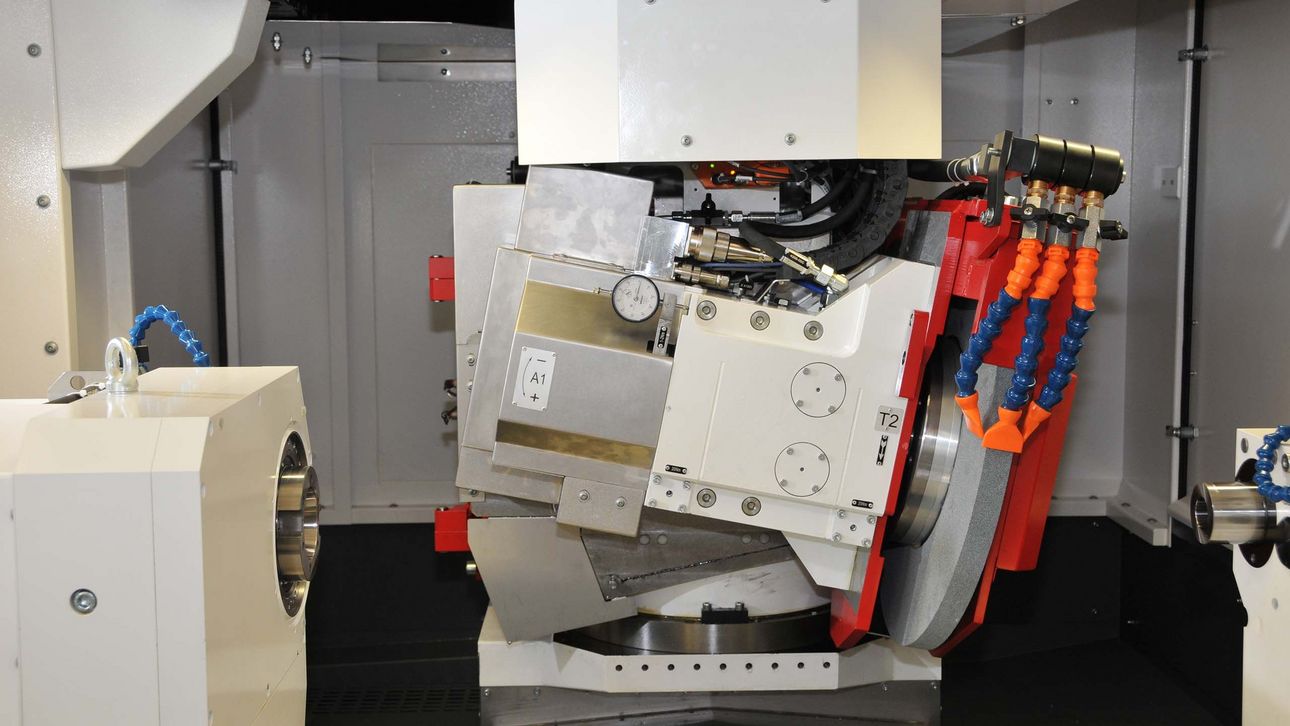

The S22 with its extensive expansion options can be configured for every grinding application to be the perfect production machine. Highly dynamic axis drives, high-quality STUDER guideway systems, short reaction times and optimized traverses form the basis of the S22. The high-speed grinding option (HSG) contributes to increasing productivity with its peripheral speed of up to 140m/s (27,600 sfpm).
Images
Hardware / Software
Hardware:

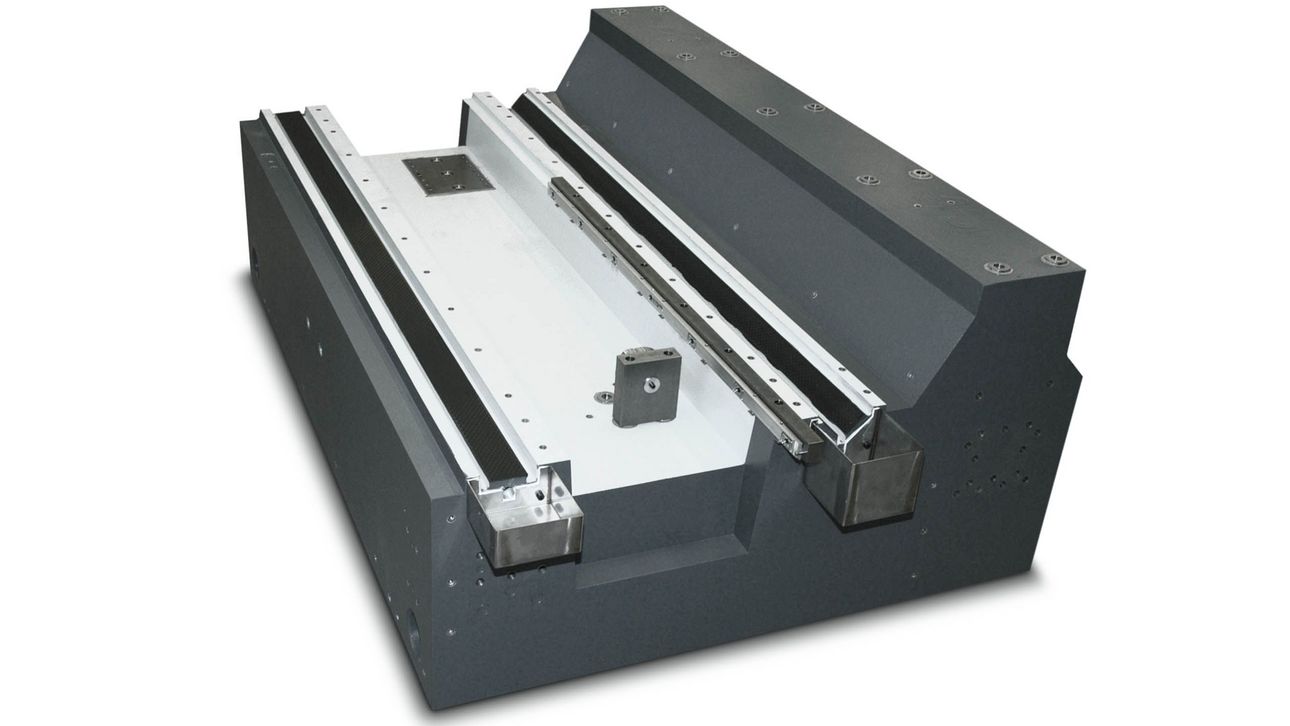

- Granitan® S103 mineral casting machine base

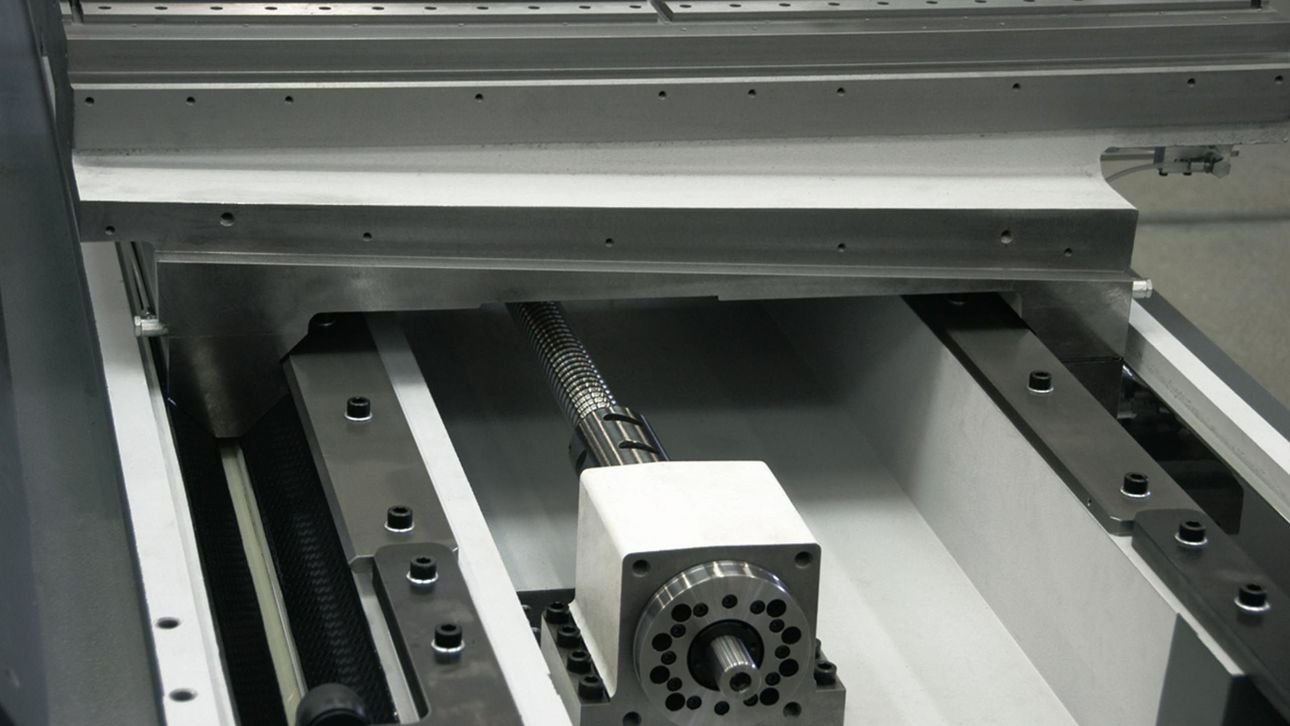

- Cross slide X: anti-friction guideways with ball-screw

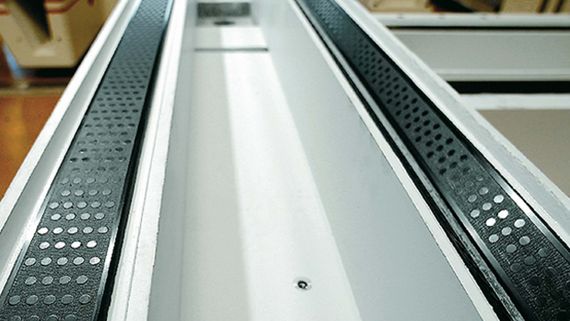

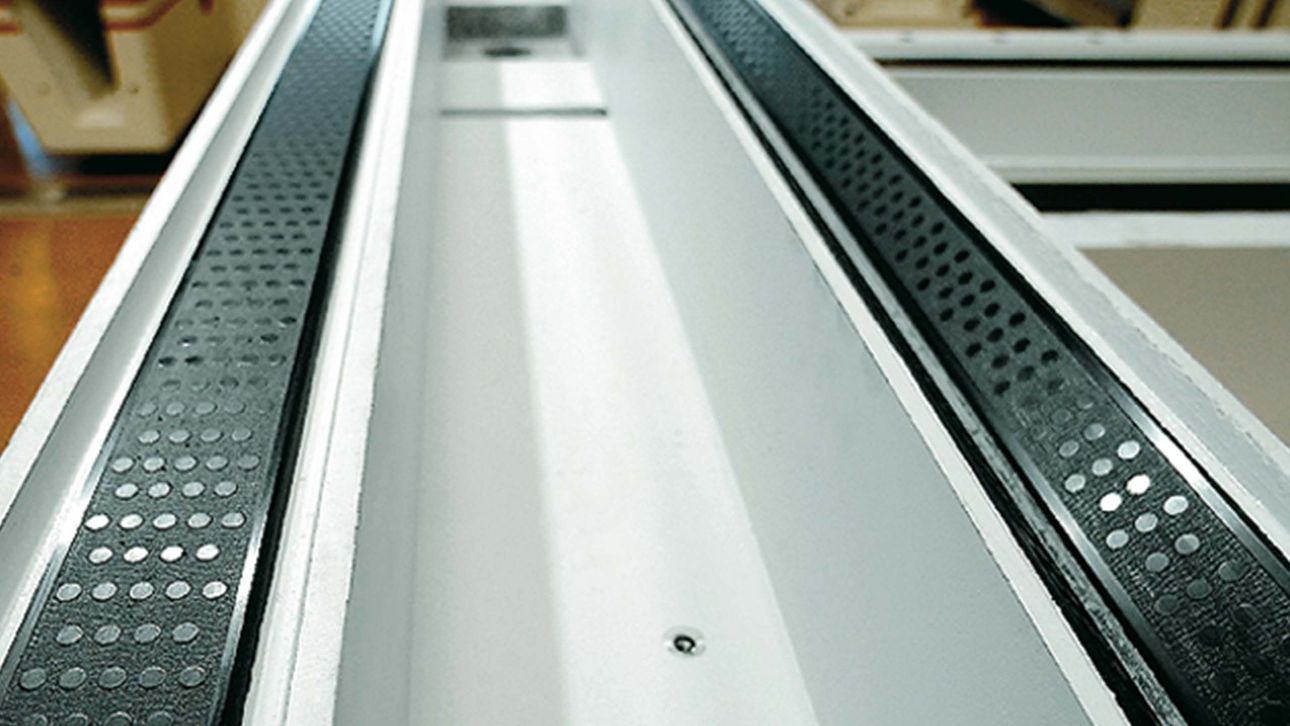

- Longitudinal slide Z: guideway with patented surface structure and ball-screw drive
- C-axis for the workhead

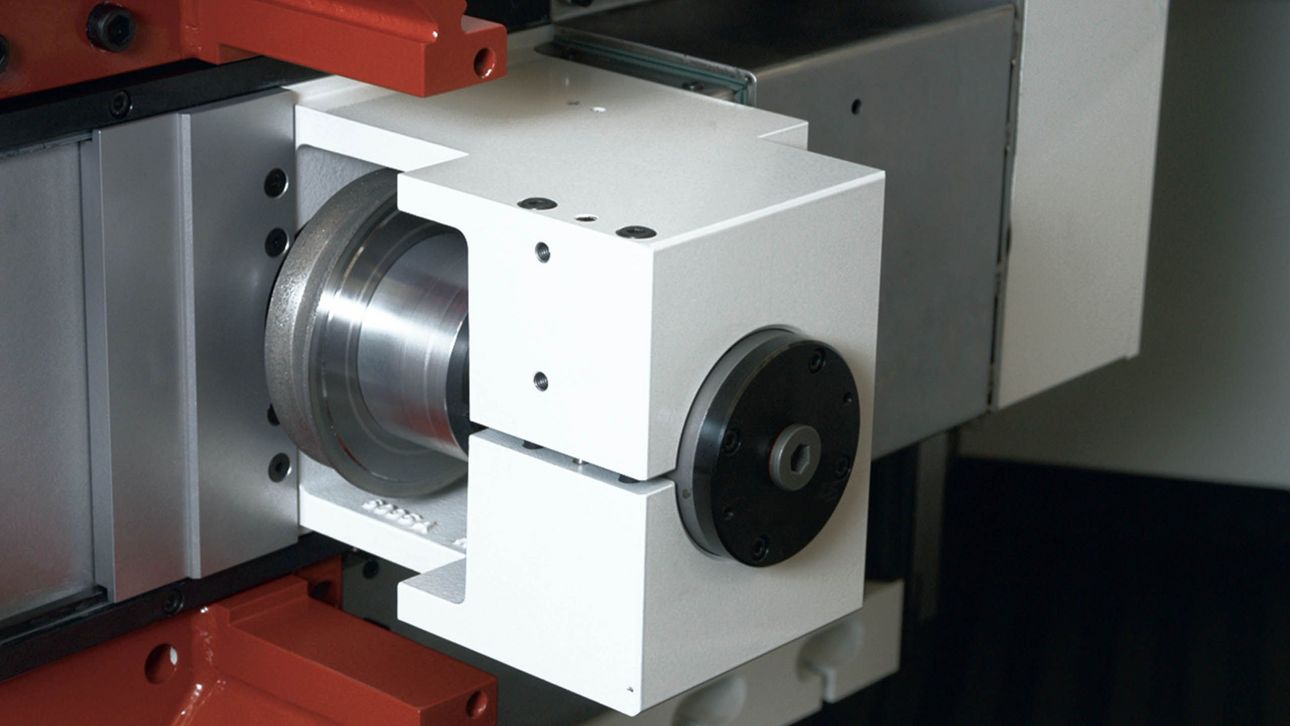

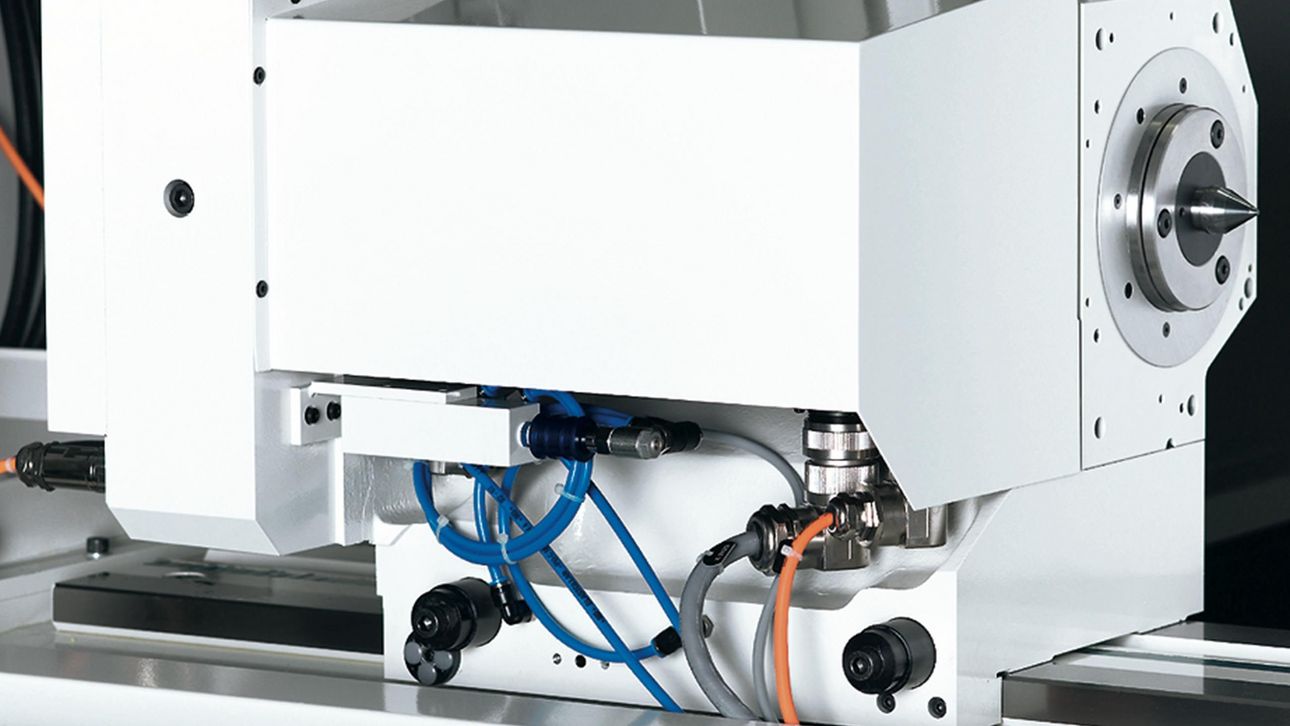

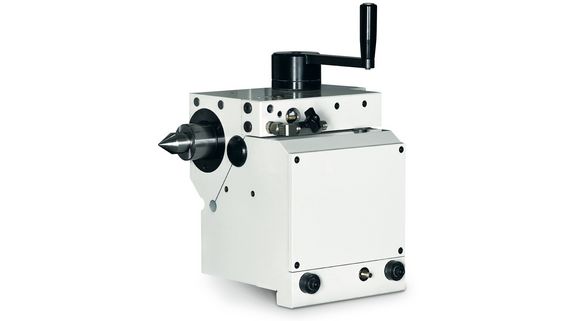

- Application-specific workhead concepts
- Additional NC axis for profiling the grinding wheel
- Full enclosure with movable front panels for optimal accessibility
- Integrated loading unit or loading cell for loading and unloading from left, right or above

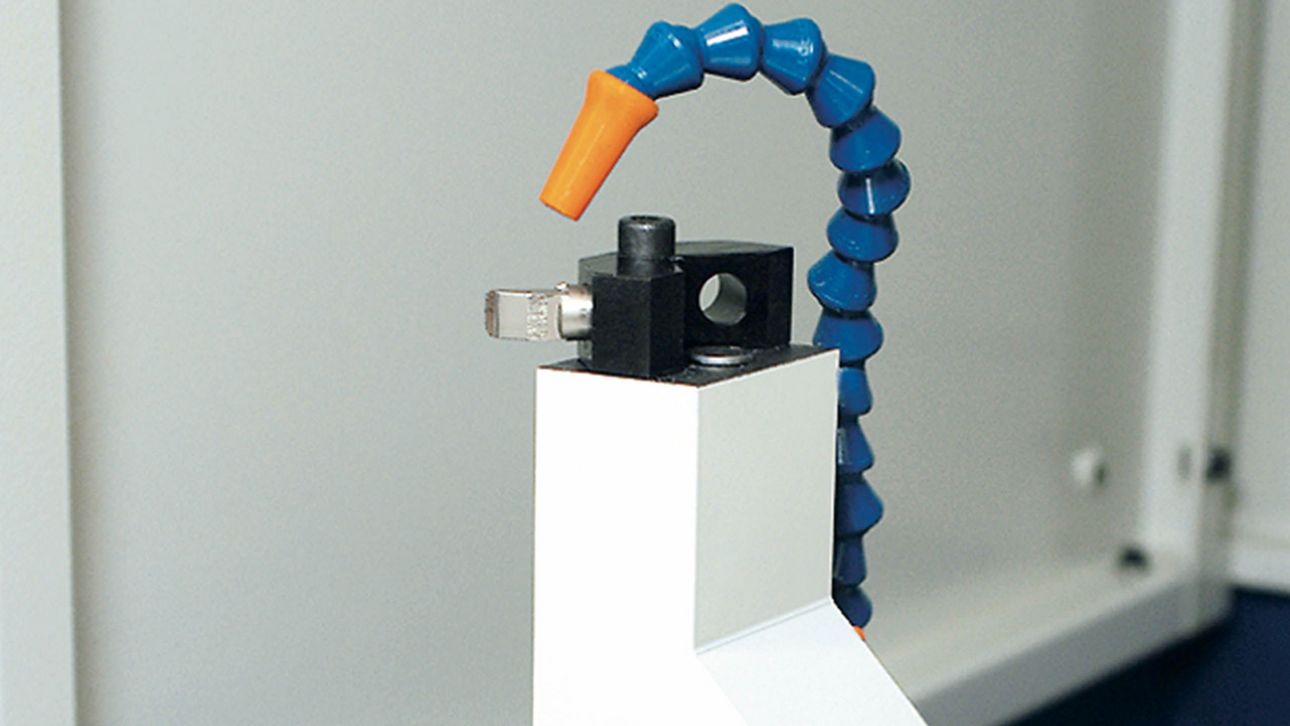

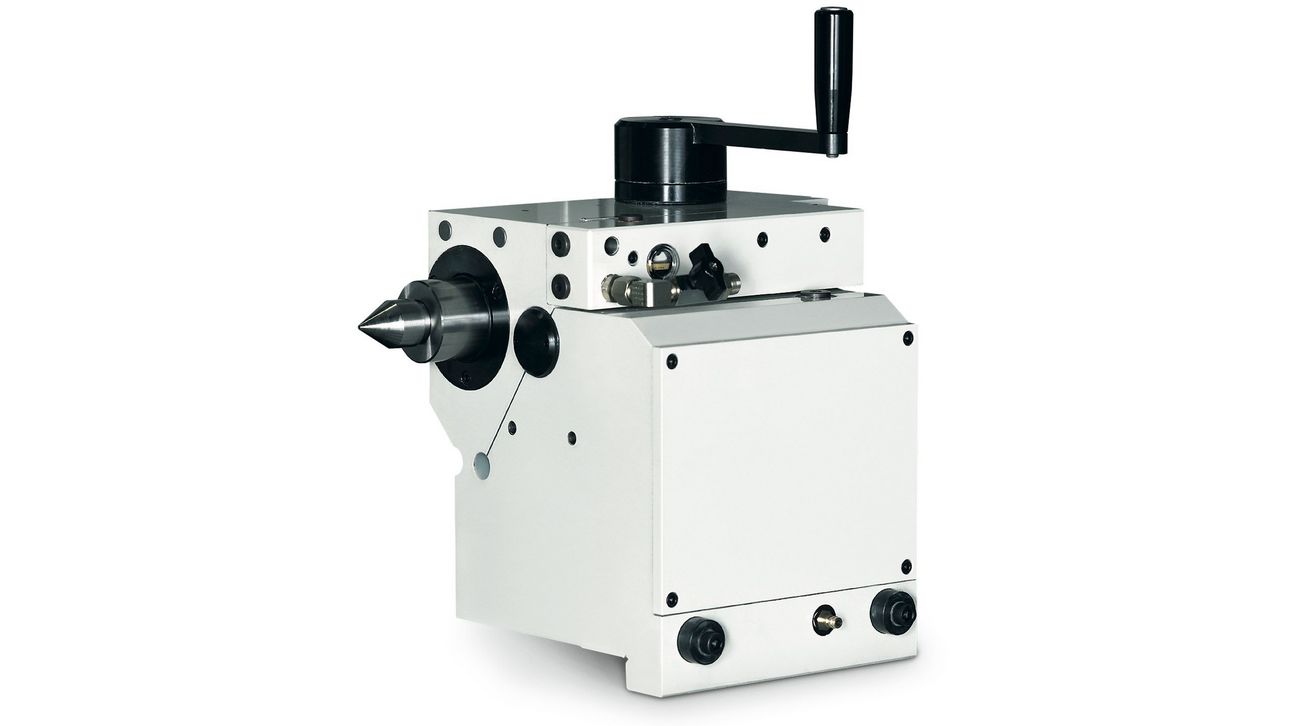

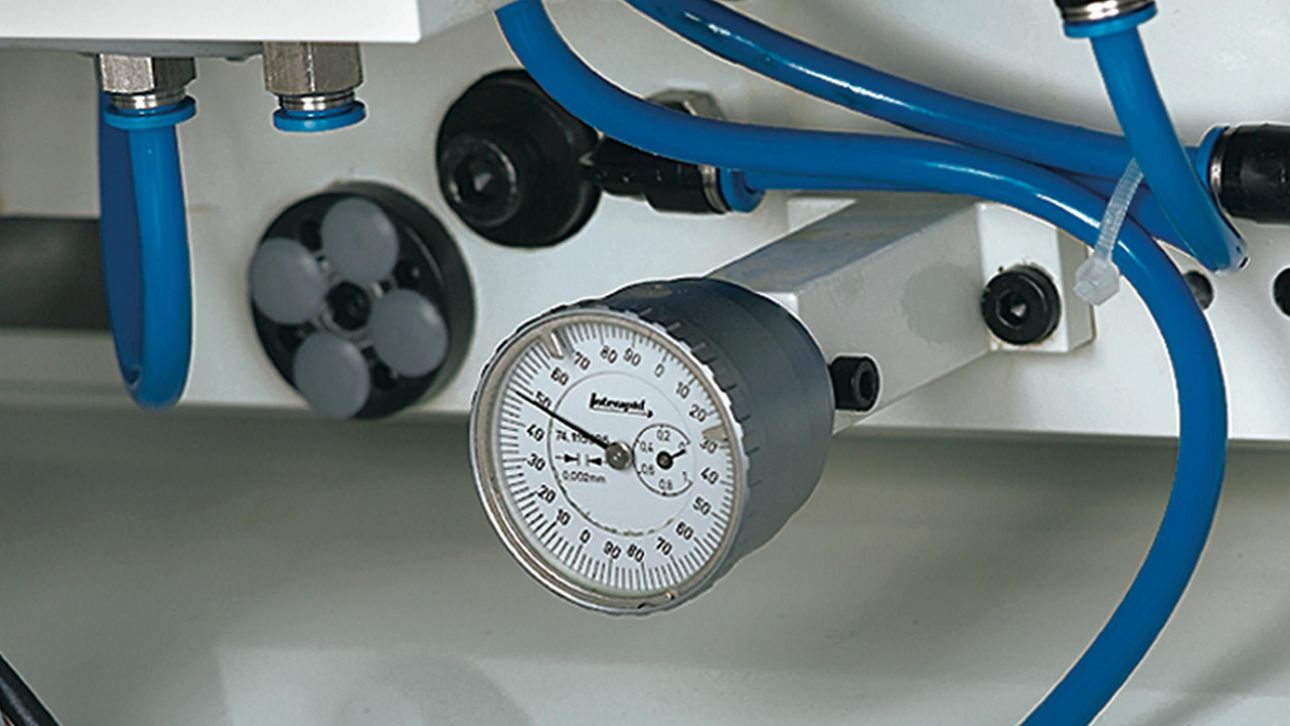

- Large range of accessories
Software:
- Easy programming with StuderWIN on Fanuc 31i-A
- StuderGRIND programming software to create grinding and
dressing programs - Standardized interfaces for loader and peripheral devices
Technical Data
Linear Axes
Max. Travel X
310 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Y
100 mm
Max. Travel Z
850 mm
Max. Travel Speed Z
30'000 mm/min
Spindle drive
Max. Spindle Power
15 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
610 mm
Max. Grinding Wheel Width
160 mm
Swiveling Axes
Swiveling Range A
26 °
Swiveling Range B
195 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
700 mm
Workpiece Diameter
449 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
800 mm
Center Height
225 mm
