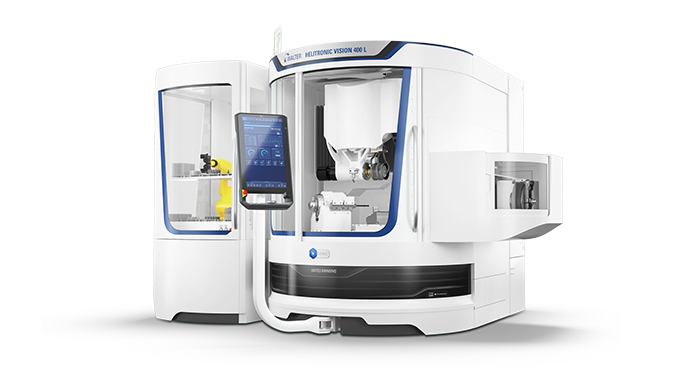

HELITRONIC VISION 400 L
High-end for highest quality requirements

HELITRONIC VISION 400 L

Basic Data

The tool grinding machine HELITRONIC VISION 400 L with C.O.R.E.-Technology produces rotationally symmetrical tools and production parts of complex geometries in high-precision production. It handles tools with a diameter of 3 to 315 mm, a tool length up to 420 mm and a piece weight of up to 50 kg.

New with Laser Contour Check option!

Features

Mineral cast gantry design

The WALTER mineral cast gantry design for optimal tool surfaces. The machine provides you with excellent vibration damping, temperature sensitivity, drive dynamics and ultimately grinding precision.

LASER CONTOUR CHECK

The new, innovative Laser Contour Check option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cylindrical tools.

Linear drive

All five CNC axes are equipped with linear drives and are controlled by the integrated high resolution measurement systems. They create exact movements while at the same time creating high dynamics.

Torque drive

The HELITRONIC VISION 400 L has a rotary axis C with a torque drive for very high accuracy and durability.

Torque motor

The rotary axis A as a torque motor with a maximum of 750 min-1. For extended functionality, such as precise profile grinding or background lines.

Motor spindle

The tool grinding machine is equipped with a powerful direct driven motor spindle with a spindle end with a liquid cooling system. Spindle performance is 33 KW.

Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 500 mm
Max. Travel Speed X 50.000 mm/min
Max. Travel Y 350 mm
Max. Travel Speed Y 50.000 mm/min
Max. Travel Z 700 mm
Max. Travel Speed Z 50.000 mm/min

Spindle drive

Max. Spindle Power 30 kW
Max. Number Of Revolutions 7.800 / 10.000 /min
Max. Grinding Wheel Diameter 254 mm

Swiveling Axes

Swiveling Range C 400 °

Workpiece Data

Workpiece Length 420 mm
Workpiece Diameter 3 - 315 mm
Max. Workpiece Weight 50 kg

Linear Axes

Max. Travel X 19.69 inch
Max. Travel Speed X 1,969 inch/min
Max. Travel Y 13.78 inch
Max. Travel Speed Y 1,969 inch/min
Max. Travel Z 27.56 inch
Max. Travel Speed Z 1,969 inch/min

Spindle drive

Max. Spindle Power 40.23 hp
Max. Number Of Revolutions 7,800 / 10,500 rpm
Max. Grinding Wheel Diameter 10 inch

Swiveling Axes

Swiveling Range C 400 deg

Workpiece Data

Workpiece Length 16.54 inch
Workpiece Diameter 0.12 - 12.40 inch
Max. Workpiece Weight 110 lbs
