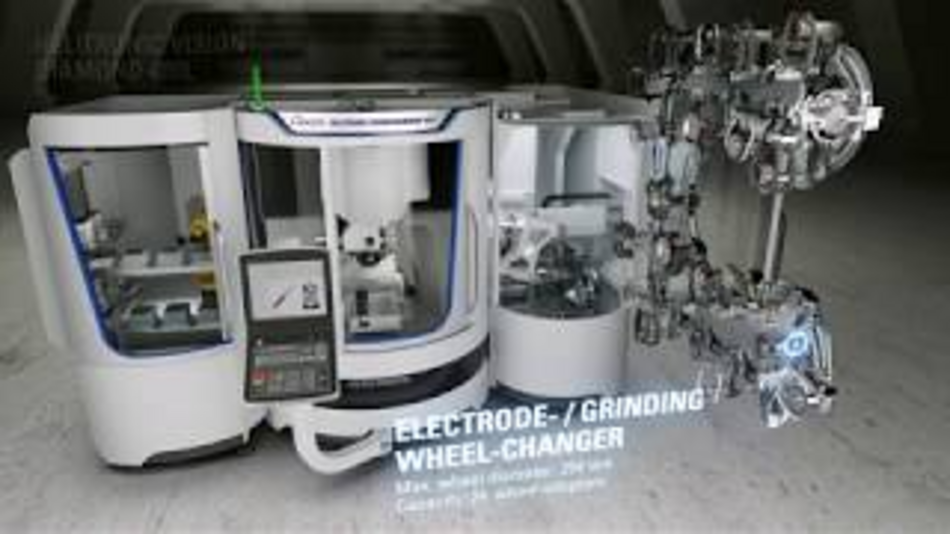

The HELITRONIC VISION DIAMOND 400 L can erode tools made of PKD/CBN material and grind tools made of high-speed steel/carbide. It handles tools with a diameter of 3 to 315 mm, with a tool length up to 420 mm and a piece weight up to 50 kg.
The WALTER mineral cast gantry design ensures optimal tool surfaces. The machine provides you with the excellent vibration damping, temperature sensitivity, drive dynamics and ultimately grinding precision.
All five CNC axes are equipped with linear drives and are controlled by the integrated high resolution measurement systems. They create exact movements while at the same time creating high dynamics.
The HELITRONIC VISION DIAMOND 400 L has a rotatioanl axis C with torque drives for a very high accuracy and durability.
The rotational axis A as a torque motor with a maximum of 750 min-1. For extended functionality, such as precise profile grinding or background lines.
Fine Pulse Technology
The eroding machine is equipped with the latest eroding technologies for a stable and fast eroding process. This ensures an excellent surface finish and minimal chipping.
Laser Contur Check
The new, innovative Laser Contour Check option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cylindrical tools.
Further Products you may be interested in

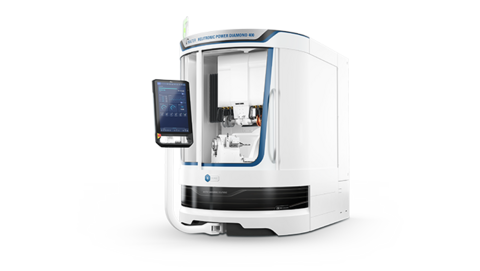

HELITRONIC POWER DIAMOND 400
The HELITRONIC POWER DIAMOND 400 tool eroding machine can erode tools made of PKD/CBN material and grind tools made of high-speed steel/carbide.

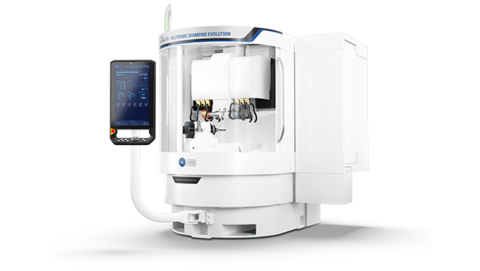

HELITRONIC DIAMOND EVOLUTION
