The efficient eroding and grinding machine


Basic Data

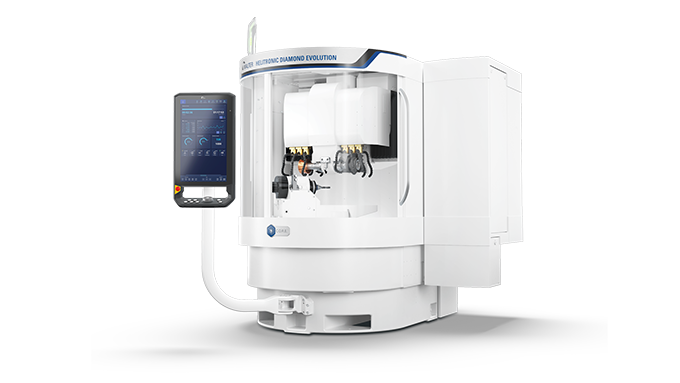

The HELITRONIC DIAMOND EVOLUTION  tool eroding machine can erode and grind tools  in one setting.

The machine is a highly efficient solution when it comes to the eroding of PKD/CBN material tools and the grinding of high speed steel/carbide tools in one single clamping cycle on a minimal footprint. It handles tools with a diameter of 1 to 165 mm, a tool length up to 185 (255) mm and a piece weight of up to 30 kg.


Gantry design

The WALTER gantry design in cast iron with its good damping properties ensures excellent tool surfaces.

Linear axes

The tool eroding machine has three linear axes X, Y, Z with ball screw. The maximum travel speed is 15 m/min.

Belt-driven spindle

The HELITRONIC DIAMOND EVOLUTION has a HSK 50 belt/driven spindle with two spindle ends for up to three  electrodes and up to three  grinding wheels, alternatively up  to six grinding wheels.

Fine Pulse Technology

The eroding machine is equipped with the latest eroding technologies for a stable and fast eroding process. This ensures an excellent surface finish and minimal chipping.

Hardware / Software
  • Robot loader
  • Top loader
  • Manual and automatic bezel
  • Manual tailstock
  • Compact electrode/grinding wheel changer
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 330 mm
Max. Travel Speed X 15.000 mm/min
Max. Travel Y 200 mm
Max. Travel Speed Y 15.000 mm/min
Max. Travel Z 470 mm
Max. Travel Speed Z 15.000 mm/min

Spindle drive

Max. Spindle Power 9 kW
Max. Number Of Revolutions 10.500 /min
Max. Grinding Wheel Diameter 150 mm

Swiveling Axes

Swiveling Range A ∞ °
Swiveling Range C 400 °

Workpiece Data

Workpiece Length 0 - 255 mm
Workpiece Diameter 1 - 165 mm
Max. Workpiece Weight 30 kg

Linear Axes

Max. Travel X 12.992 inch
Max. Travel Speed X 591 inch/min
Max. Travel Y 7.874 inch
Max. Travel Speed Y 591 inch/min
Max. Travel Z 18.504 inch
Max. Travel Speed Z 591 inch/min

Spindle drive

Max. Spindle Power 12.237 hp
Max. Number Of Revolutions 10,500 rpm
Max. Grinding Wheel Diameter 5.906 inch

Swiveling Axes

Swiveling Range A ∞ deg
Swiveling Range C 400 deg

Workpiece Data

Workpiece Length 0 - 10.039 inch
Workpiece Diameter 0.039 - 6.500 inch
Max. Workpiece Weight 66.2 lbs
