Maximum productivity
in batch production
Basic Data

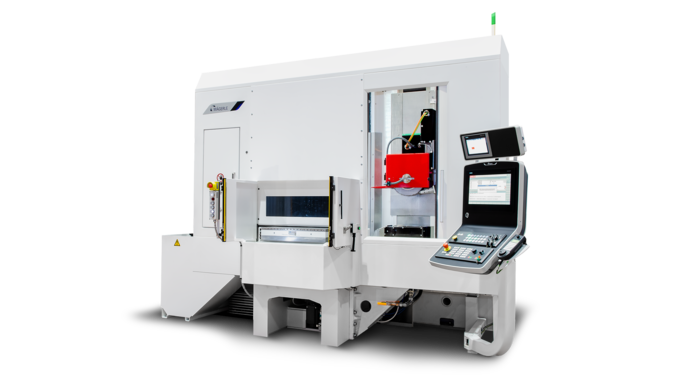

In its swiveling table version, the MGC is also designed with the maximum ejection capacity. The 180° swiveling table allows loading and unloading of workpieces while machining is in operation. Non-productive times for workpiece change are thus largely eliminated. This results in maximum productivity for small and large batches, as well as in special applications. The MGC with swiveling table, in conjunction with the automatic loading and unloading system, frees up additional reserves. The openly accessible swiveling table also provides the ideal interface.
Read more
Technical Data
Linear Axes
Max. Travel X
1300 mm
Max. Travel Speed X
20000 mm/min
Max. Travel Y
650 mm
Max. Travel Speed Y
20000 mm/min
Max. Travel Z
500 mm
Max. Travel Speed Z
20000 mm/min
Spindle drive
Max. Spindle Power
75 kW
Max. Number Of Revolutions
8000 /min
Max. Grinding Wheel Diameter
500 mm
Max. Grinding Wheel Width
240 mm
Swiveling Axes
Swiveling Range B
180 °
Workpiece Data
Table Sizes
760 x 325 mm
Linear Axes
Max. Travel X
2100 mm
Max. Travel Speed X
20000 mm/min
Max. Travel Y
900 mm
Max. Travel Speed Y
20000 mm/min
Max. Travel Z
500 mm
Max. Travel Speed Z
20000 mm/min
Spindle drive
Max. Spindle Power
115 kW
Max. Number Of Revolutions
8000 /min
Max. Grinding Wheel Diameter
500 mm
Max. Grinding Wheel Width
240 mm
Swiveling Axes
Swiveling Range B
180 °
Workpiece Data
Table Sizes
1000 x 440 mm
Linear Axes
Max. Travel X
2100 mm
Max. Travel Speed X
20000 mm/min
Max. Travel Y
900 mm
Max. Travel Speed Y
20000 mm/min
Max. Travel Z
750 mm
Max. Travel Speed Z
20000 mm/min
Spindle drive
Max. Spindle Power
115 kW
Max. Number Of Revolutions
8000 /min
Max. Grinding Wheel Diameter
600 mm
Max. Grinding Wheel Width
300 mm
Swiveling Axes
Swiveling Range B
180 °
Workpiece Data
Table Sizes
1000 x 440 mm
Linear Axes
Max. Travel X
2600 mm
Max. Travel Speed X
20000 mm/min
Max. Travel Y
900 mm
Max. Travel Speed Y
20000 mm/min
Max. Travel Z
750 mm
Max. Travel Speed Z
20000 mm/min
Spindle drive
Max. Spindle Power
115 kW
Max. Number Of Revolutions
8000 /min
Max. Grinding Wheel Diameter
600 mm
Max. Grinding Wheel Width
300 mm
Swiveling Axes
Swiveling Range B
180 °
Workpiece Data
Table Sizes
1000 x 440 mm
