The super-productive machine for small workpieces.
Basic Data

The S11 is a production cylindrical grinding machine for small workpieces. It has a distance between centres of 200mm (7.9") and a centre height of 125mm (4.9"). It can machine workpieces with a maximum weight of 3kg (6.6lbs).

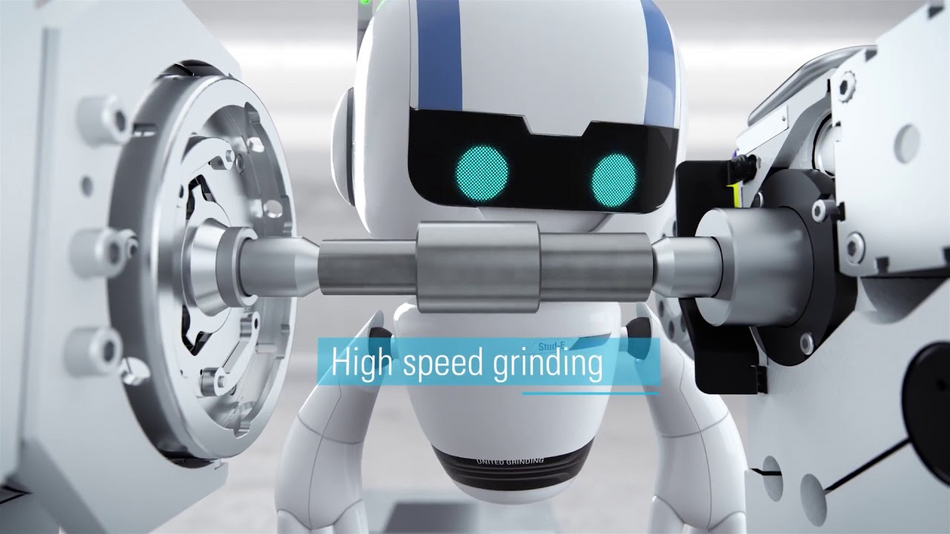

The production cylindrical grinding machine can be precisely tailored to the desired process. Highly dynamic axis drives, high-quality STUDER guideway systems, short reaction times and optimized traverses form the basis of the S11. The high-speed grinding option (HSG) contributes to increasing productivity with its peripheral speed of up to 140m/s (27,600 sfpm). With a floorspace requirement of less than 1.8m2 (19.4sqft), it is extremely compact and will fit in any workshop.

Images
Hardware / Software

Hardware:

  • Grinding wheel arrangement 0° or 20°
  • Grinding wheel right dia. 500 x 63 x 203 mm (20" x 2.5" x 8")
  • Two full enclosure variants:
    - With large door opening, ideal for manual loading or small loader systems
    - With loading hatch for top loading, especially suitable for the interconnection of several machines
  • Dual axis cover (telescopic and bellows)
  • Granitan® S103 mineral casting machine base
  • C.O.R.E. Panel

Software:

  • Easy programming
  • Simple and clear process visualization
  • C.O.R.E. OS Operating system
  • In-process gauging software integrated into the machine control
  • StuderWIN programming software for producing grinding and
    dressing programs on a PC
  • StuderGRIND programming software for the creation of grinding and dressing programs directly on the machine control, or on an external PC
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 210 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 210 mm
Max. Travel Speed Z 15'000 mm/min

Spindle drive

Max. Spindle Power 5 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 63 mm

Swiveling Axes

Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 130 mm
Workpiece Diameter 249 mm
Max. Workpiece Weight 3 kg
Distance Between Centers 200 mm
Center Height 125 mm

Linear Axes

Max. Travel X 8.3 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 8.3 inch
Max. Travel Speed Z 590 inch/min

Spindle drive

Max. Spindle Power 6.1 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 2.5 inch

Swiveling Axes

Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 5.1 inch
Workpiece Diameter 9.8 inch
Max. Workpiece Weight 6.6 lbs
Distance Between Centers 7.9 inch
Center Height 4.9 inch
