The new, innovative "Laser Contour Check" option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cutting tools.
With "Laser Contour Check" ready for unmanned production!
With the "Laser Contour Check", you can automatically correct the manufactured tool diameter as well as the tool contour inside the process. This means without unclamping the tool or stopping the machine. This improves the accuracy of the manufactured tool, increases productivity, reduces scrap and the set-up time of the grinding/eroding machine.

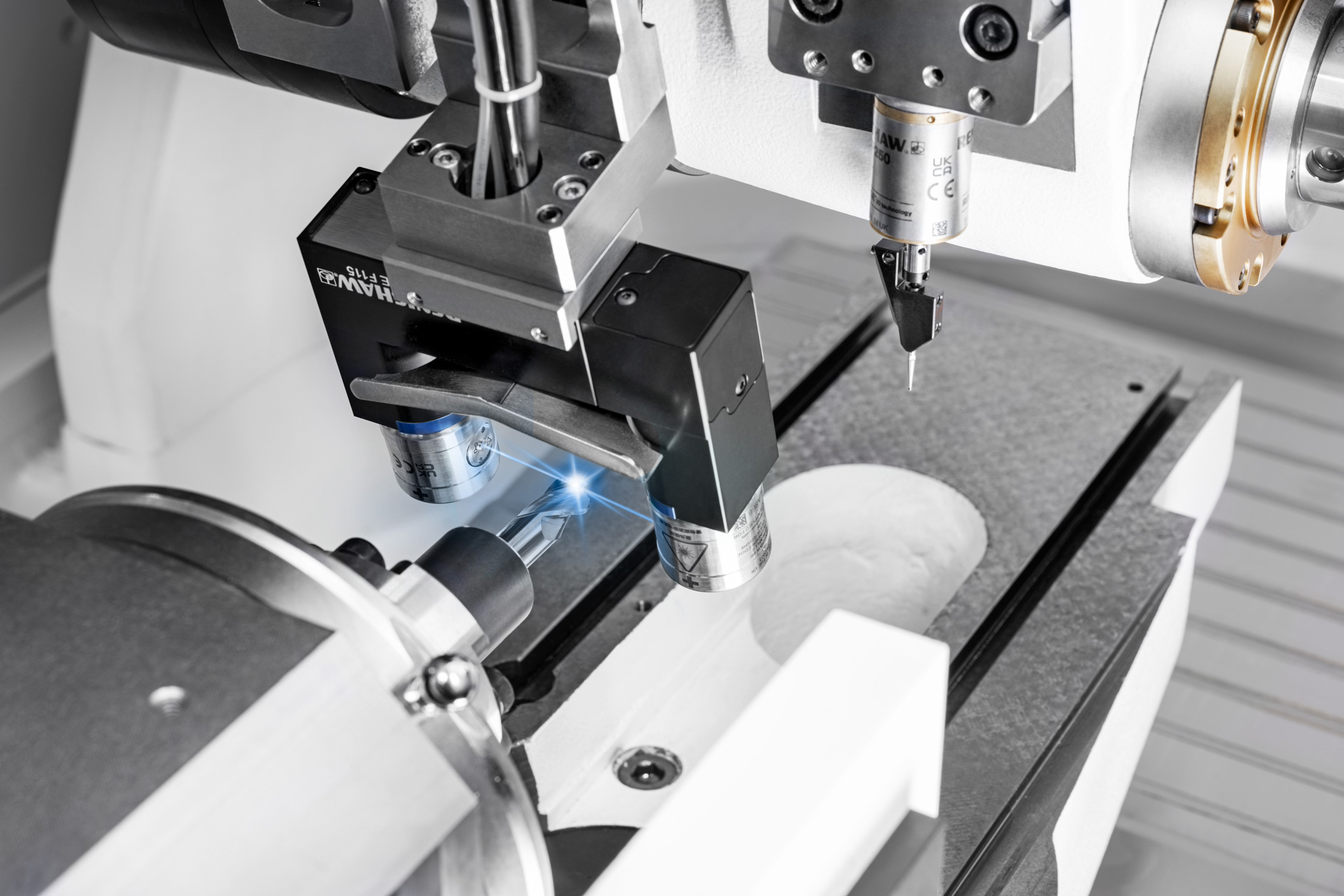

The Laser Contour Check (LCC) software module in the latest release of our HELITRONIC TOOL STUDIO workpiece processing software is more powerful than before. Measurement operations can be added to a program with just a few clicks. The laser operation locks onto the workpiece contour, automatically follows the corresponding grinding edge during measurement and then compares the target and actual contour. If the deviations are outside the specified tolerance range, the software initiates a fully automatic correction to ensure that subsequent parts are within the tolerances. The aim is to reduce the number of rejects.
Non-contact tool measurement using lasers is fast and avoids damaging the tool. Among other things, the new software module can correct any tangentially connected contours. Furthermore, all corrections are presented in graphical and tabular form in a clear measurement report.
With the WALTER "Laser Contour Check" option you are ready for the unmanned production. In the film, we will explain you the innovative option in detail.
All WALTER machines with "Laser Contour Check" option

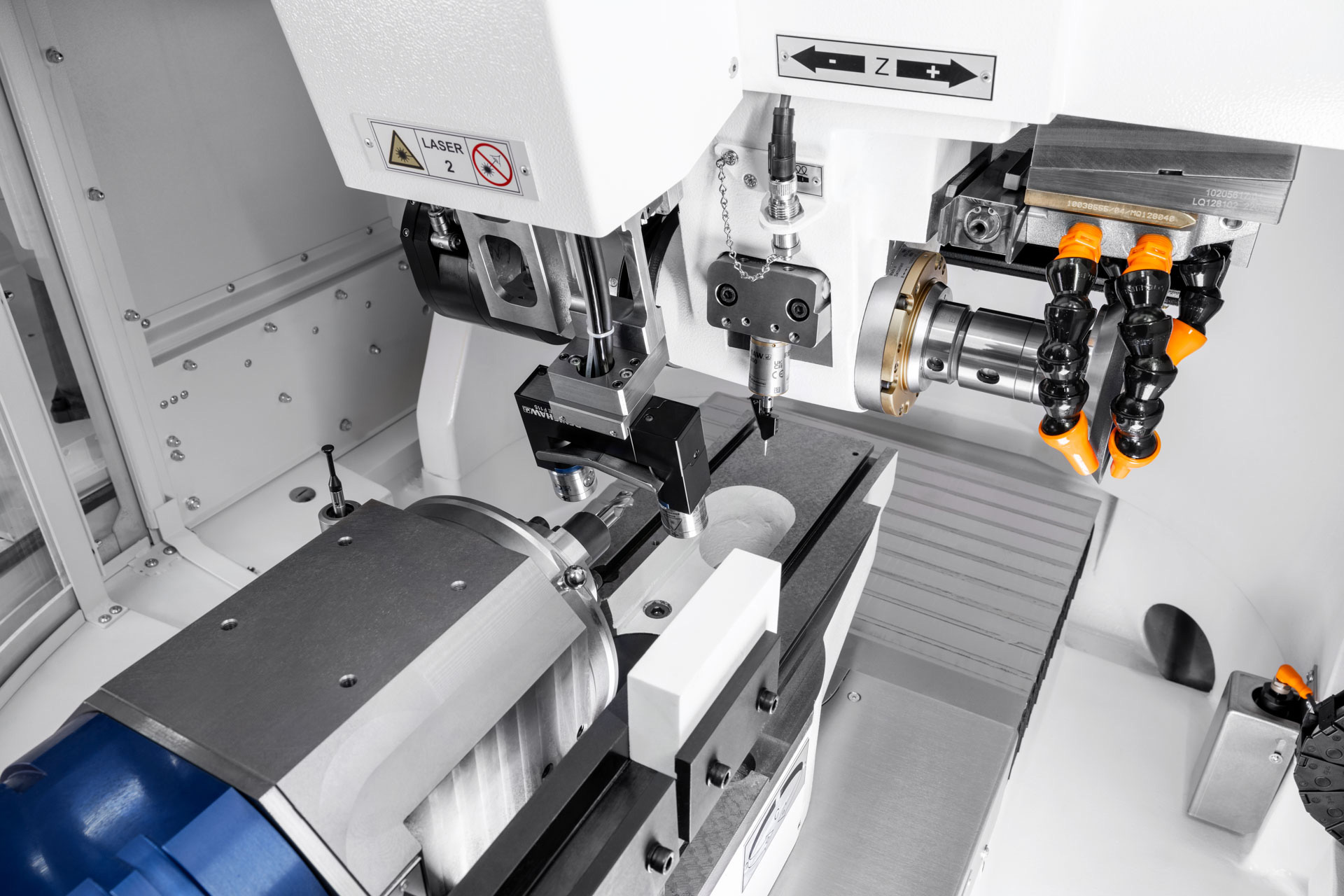

HELITRONIC MINI PLUS
With the HELITRONIC MINI PLUS tool grinding machine, tools with small and medium diameters can be flexibly produced and resharpened.
HELITRONIC POWER 400
The HELITRONIC POWER 400 tool grinding machine offers the highest flexibility in volume production.

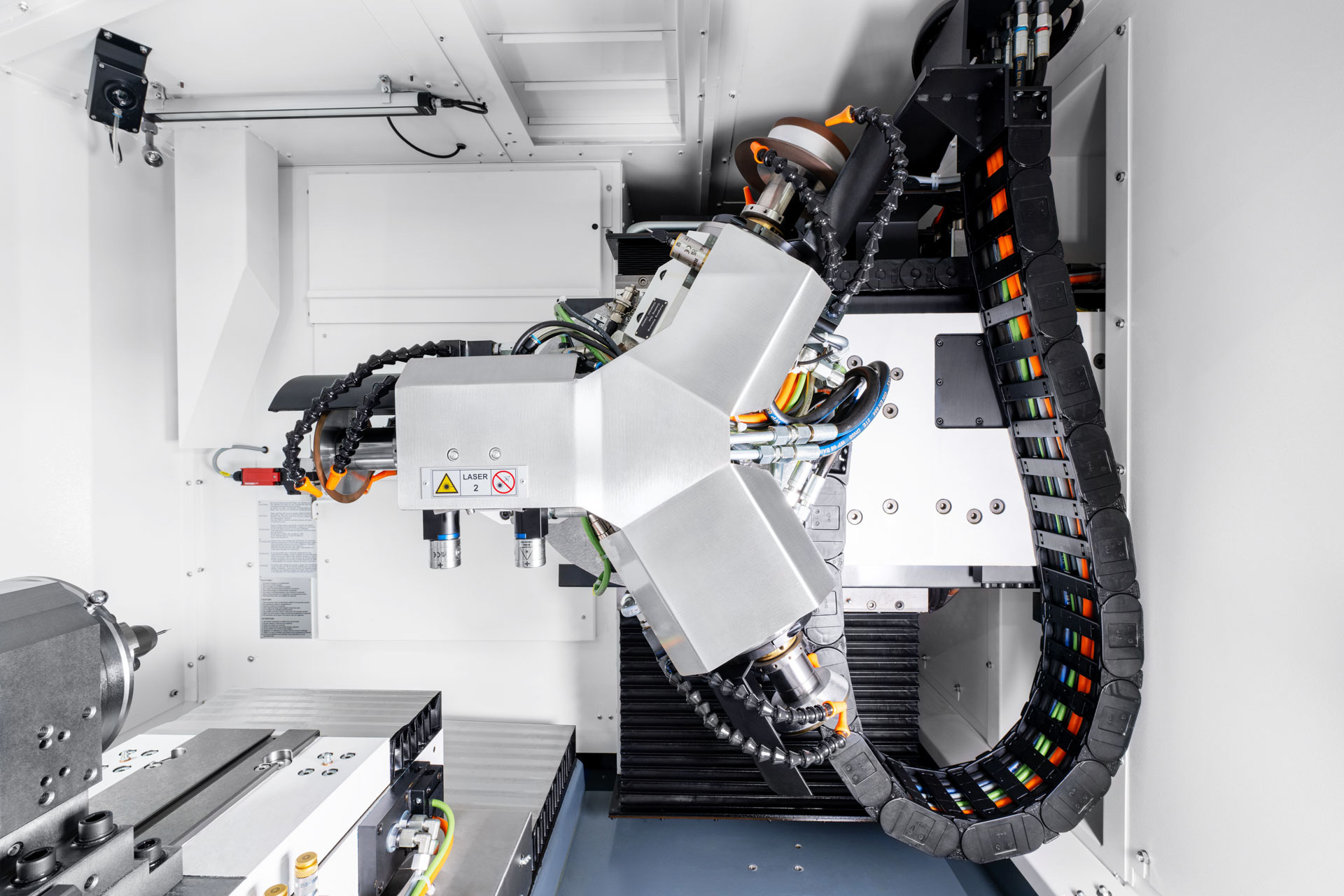

The high-end HELITRONIC MICRO tool grinding machine produces and sharpens rotationally symmetrical tools and production parts with smaller diameters.
HELITRONIC VISION 400 L
The high-end HELITRONIC VISION 400 L tool grinding machine stands for the highest accuracy and dynamics in volume production for tool lengths up to 420 mm.
HELITRONIC DIAMOND EVOLUTION
The efficient HELITRONIC DIAMOND EVOLUTION combined eroding and grinding machine can grind and erode tools in one setting.
HELITRONIC POWER DIAMOND 400
The HELITRONIC POWER DIAMOND 400 tool eroding machine can erode tools made of PKD/CBN material and grind tools made of high-speed steel/carbide.
