All-in-One Laser Precision machining of diamond tools
LASER LINE PRECISION
Basic Data

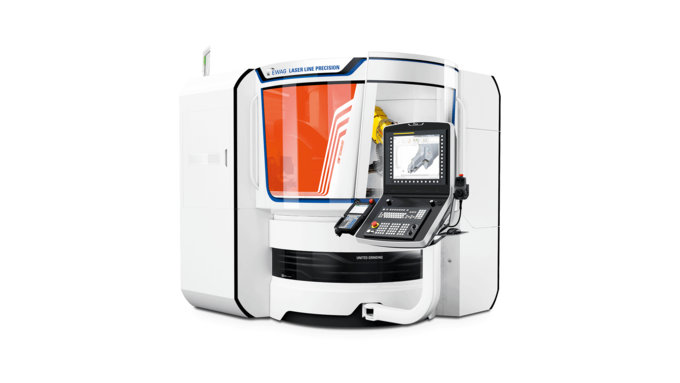

The LASER LINE PRECISION is the perfect entry-level machine to laser technology for ultra-hard materials. The latest laser technology in the green wavelength range offers efficient machining results of the most common diamond cutting materials such as CBN, PKD, MKD and CVD-D. The EWAG Laser Touch Machining® process can produce even extremely complex geometries at the best surface finish qualities. The LASER LINE PRECISION is one of the most compact laser production center for diamond tools.

Features

Mechanical layout

The machine bed is made of gray cast iron, providing high stability and excellent vibration damping.

Linear drive

The LASER LINE PRECISION has linear drives on the X, Y and Z axes. The water-cooled direct drives can reach a maximum speed of 15 m/min.

Glass scales

The integrated glass scales provide a linear resolution of 0.0001 mm, promoting extremely high positioning accuracy.

Hardware / Software

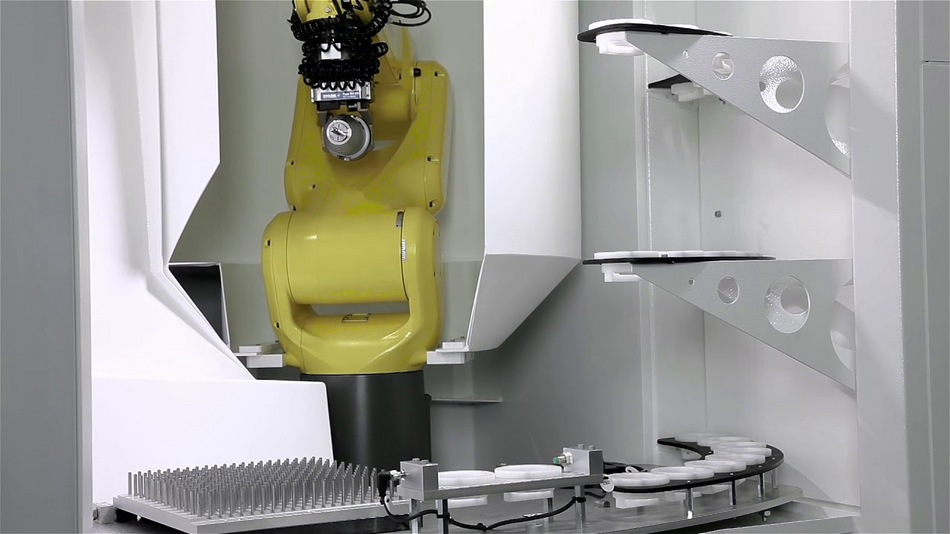

  • Fully automatic loading using FANUC 6 axes robots with 24 HSK63 slots for rotary tools, as well as a pallet system for indexable inserts.
  • A conveyor-driven stacker extends pallet capacity up to 8 pallets.
  • Unchucked rotary tools can be inserted by means of hydraulic tensioning teeth.
  • Hydrodynamic clamping station to accommodate rotating tools.
  • 3D measuring probe for precise positioning and automatic correction of solder errors on indexable inserts.
  • High-dynamic C axis with integrated HSK63 tool clamping.
  • Automatic clamping station for indexable inserts.
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 440 mm
Max. Travel Speed X 5'000 mm/min
Max. Travel Y 140 mm
Max. Travel Speed Y 5'000 mm/min
Max. Travel Z 170 mm
Max. Travel Speed Z 15'000 mm/min

Laser

Wave Length 532 nm
Repetition Rate 50 - 300 kHz

Swiveling Axes

Swiveling Range B 220 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 250 mm
Workpiece Diameter 0 - 200 mm
Max. Workpiece Weight 5 kg

Linear Axes

Max. Travel X 17,323 inch
Max. Travel Speed X 197 inch/min
Max. Travel Y 5,512 inch
Max. Travel Speed Y 197 inch/min
Max. Travel Z 6,693 inch
Max. Travel Speed Z 591 inch/min

Laser

Wave Length 532 nm
Repetition Rate 50 - 300 kHz

Swiveling Axes

Swiveling Range B 220 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 9,843 inch
Workpiece Diameter 0,004 - 7,874 inch
Max. Workpiece Weight 11,0 lbs
